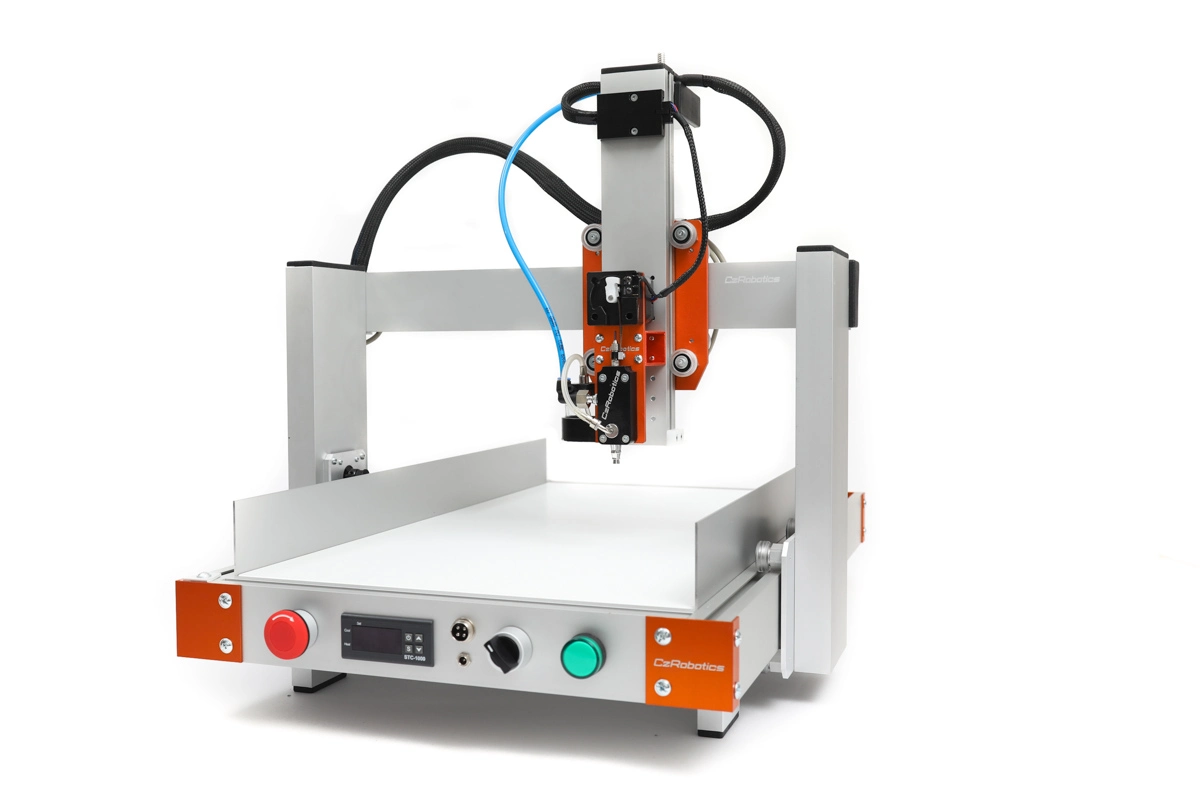

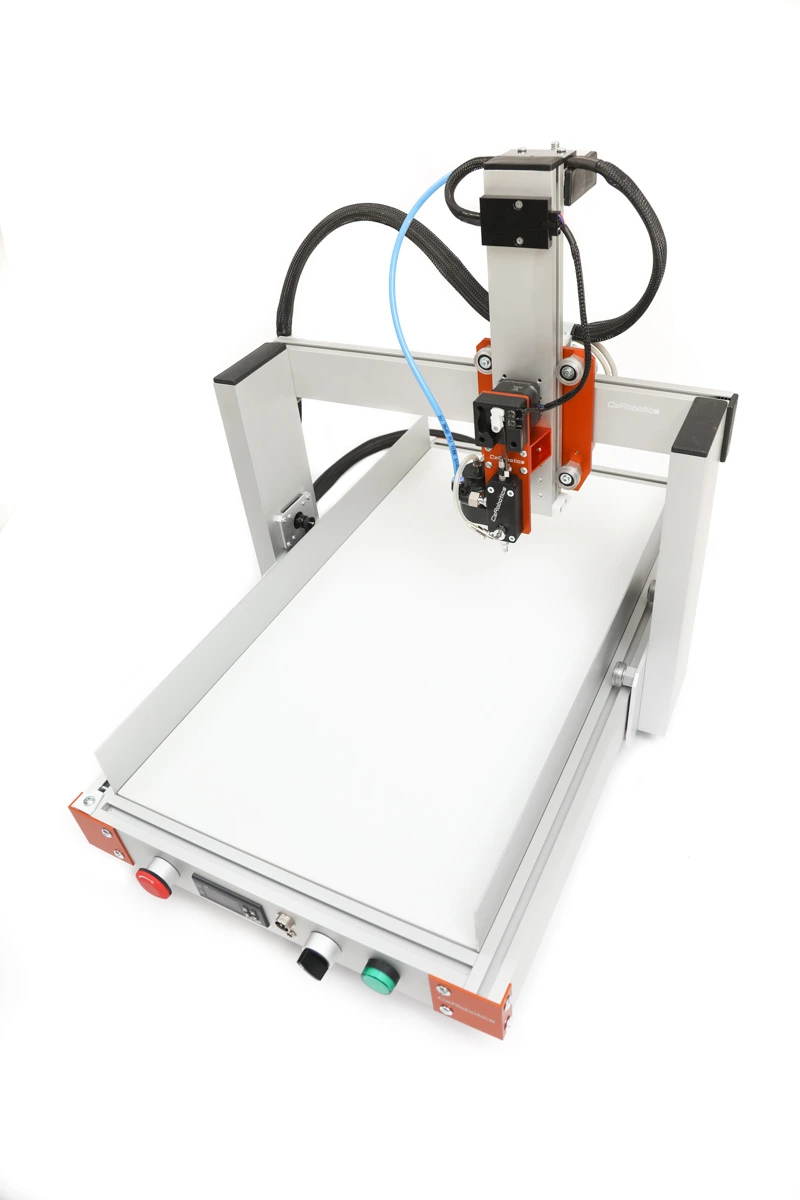

Compact Singular setup with heated working plate
CNC Singular Smooth + Heated Pad is a standard CzRobotics complete machine configuration for repeatable airbrush coating work. It is intended for laboratories, R&D teams, and specialized production tasks where the coating result depends on controlled path, speed, nozzle opening, air pressure, and repeatable timing.
This configuration adds the most popular drying upgrade to the compact Smooth Head machine.
Best fit
- Coatings where drying time or layer formation is part of the process.
- Repeatable lab samples that benefit from controlled substrate heating.
- Direct ordering when the compact area and single-nozzle head are enough.
Included configuration
- CNC Singular compact frame.

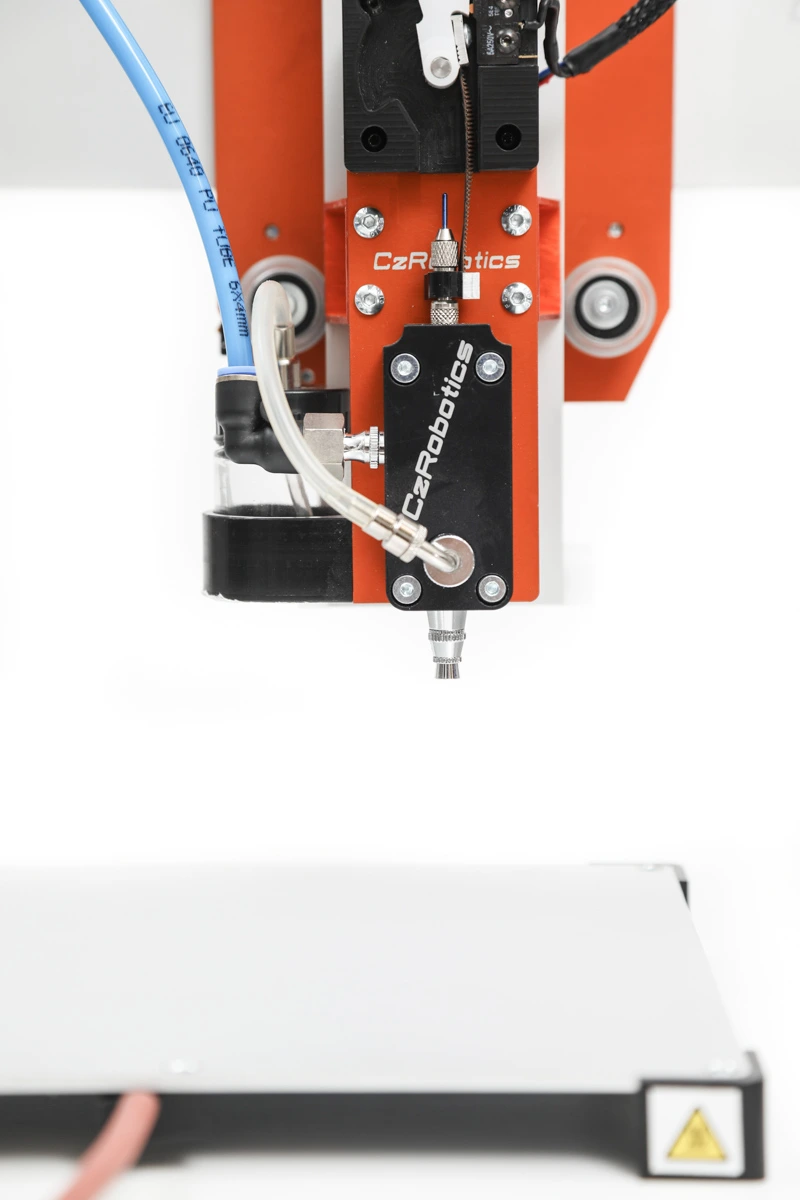

- Smooth Head, motorized single-nozzle airbrush.

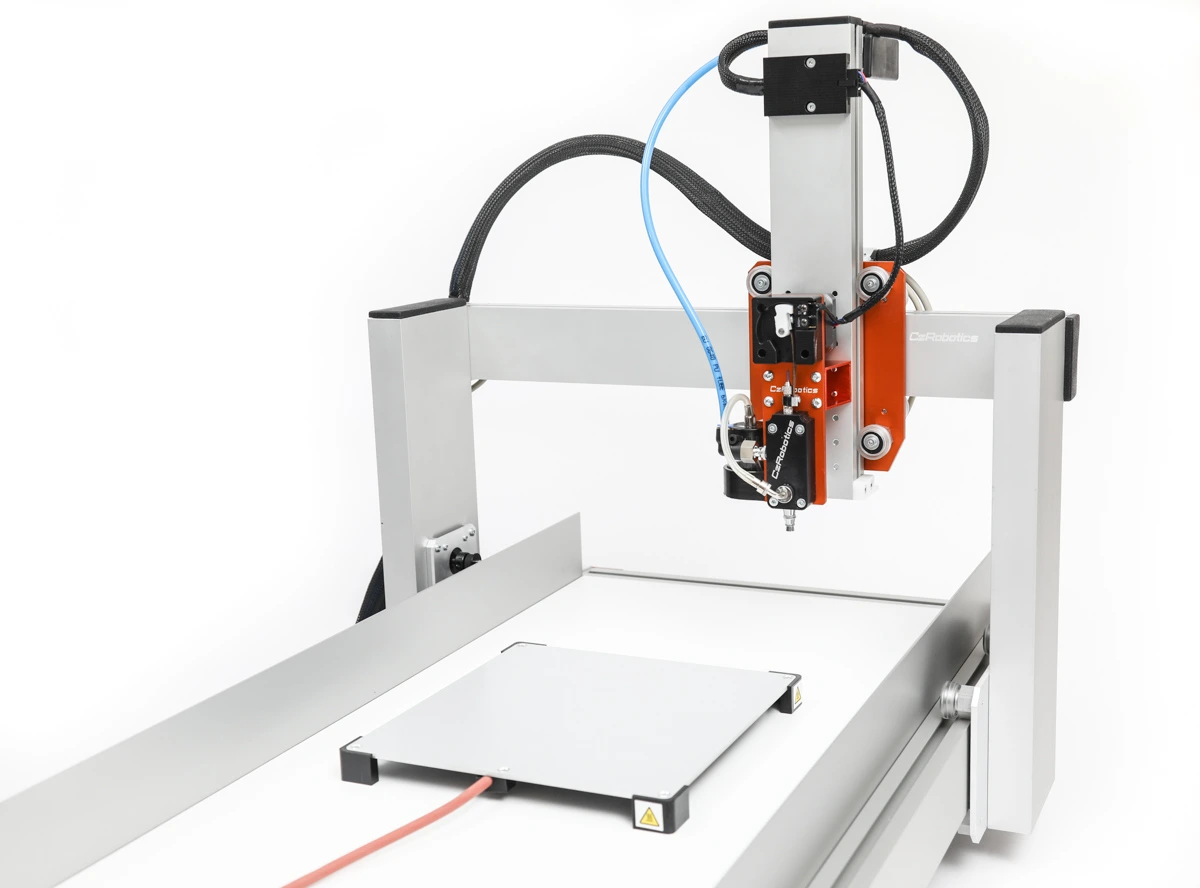

- The heated working plate is included for drying-sensitive layers and repeatable lab work.
- USB G-code controller included.
- 110-240 V power adapter included.
Working area and control
The useful sprayed area for this setup is 520 x 300 mm. The machine is controlled by G-code from a lab PC through the included USB controller. The standard workflow uses vector geometry, CzRobotics/Inkscape G-code preparation, and sending the program through Candle or UGS Platform.
Material notes
The system is intended for sprayable liquids with viscosity close to water or milk. Solid particles should stay below about 50 microns so the needle can close reliably and the nozzle does not clog. Fast-drying nitro paints are not recommended because they tend to dry on the needle and nozzle.
When to use the configurator instead
Choose this product when the listed configuration matches your task. Use the machine configurator if you need a different working area, head system, heating choice, rotary table, external control unit, or an application-specific recommendation before ordering.
